Record your Singular.live output with an alpha channel (retaining background transparency) and import the recording directly into Adobe editing software for use in non-live content.
1 - Download OBS & Video Monitor (for Mac)
First, you’ll need to download and install OBS to convert your Singular output in real time to an NDI® feed.
-
Download OBS
-
Download OBS-NDI add-on
Follow the "Go to download" link and then grab your installation package for Mac.
2 - Download NDI® Video Monitor (for Mac)
The NDI® feed generated by OBS will be picked up and recorded with transparency seamlessly by NDI® Video Monitor.
3 - Download Adobe CC Plugin(s)
Download the necessary NDI Adobe Premiere Pro and/or After Effects plugins for your final recorded videos to import properly into your Adobe editing software.
4 - Create OBS NDI Feed
-
Open up OBS and make sure you have your Singular output browser layer (with nothing behind it) active in your scene.
-

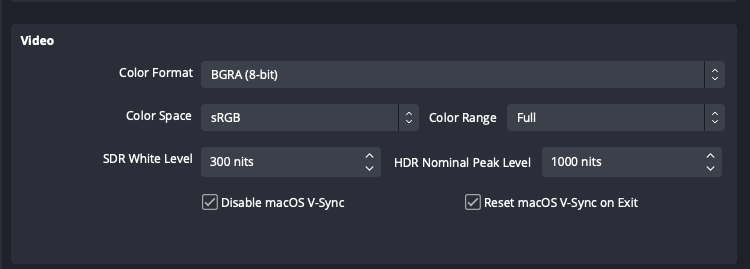

Go to Settings > Advanced and scroll to the Video Box. Then Replicate the following settings:
Note that BGRA is a color format that includes alpha. You may get a warning after selecting these options but it can be disregarded for the purposes of generating your NDI feed. -

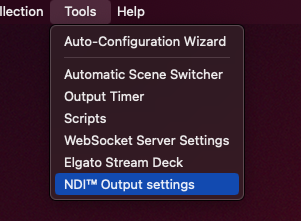

Navigate to Tools > NDI™ Output settings:

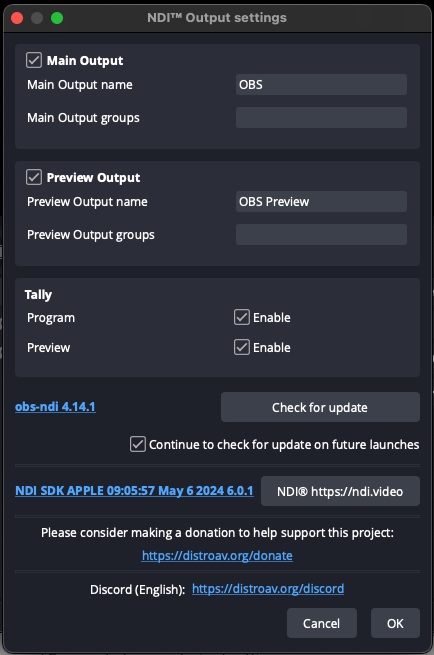

Then activate the Main Output checkbox and leave the default name or change it to something you'll remember:
3 - Record Feed (With Transparency) in Video Monitor

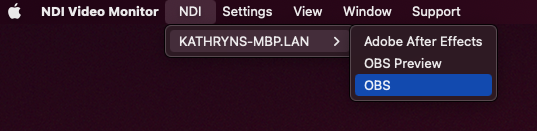

- Open NDI® Video Monitor and select the OBS NDI feed by heading to NDI in the top menu and navigating to your active OBS feed named earlier:
You should now see your OBS NDI feed of your output url inside the NDI video monitor frame. - Lastly, hit the record button in the top right corner of the video frame.
- As the recording is in progress, operate all the graphic overlays you want to use in post production.
Note
Make sure to end the recording when you have what you need. Deactivate the OBS NDI feed when complete in the Tools > NDI™ Output settings by unchecking the "Main Output" and "Preview Output" boxes.
4 - Import .mov Recording into Adobe Editing Software
The .mov recording provided by Video Monitor can easily be dropped into your Adobe editing software to clip and edit as needed!
If you can't find your video file, double check or change your NDI Video Monitor recording path in Settings > Set Record Path:
Note
Make sure that you’re viewing the transparency grid in your editing software to see how the transparent aspects of your output have been retained.
